【洗闻乐道】丸三，洗护行业智能环保健康整体解决方案的引领者

丸三浩联科技(浙江)有限公司

展位号：W1D66

公司官网：http://www.wansanchina.com/

公司介绍

丸三浩联科技（浙江）有限公司，是一家集研发、生产、销售和服务为一体的高新技术企业。公司是“洗护行业智能环保健康整体方案解决的引领者”，是TOB端整体方案案提供商和服务商；公司具有强大且专业的创新研发实力、制造过程精益生产管控能力。

Wansan Haolian Technology（Zhejiang）Co.,Ltd. is a high-tech enterprise that integrates research and development, production, sales, and service.The company is a leader in intelligent environmental protection and health overall solution solutions for the washing and care industry, and a provider and service provider of TOB end overall solution solutions; The company has strong and professional innovative R&D strength and Lean manufacturing management and control capability in manufacturing process.

展品预览

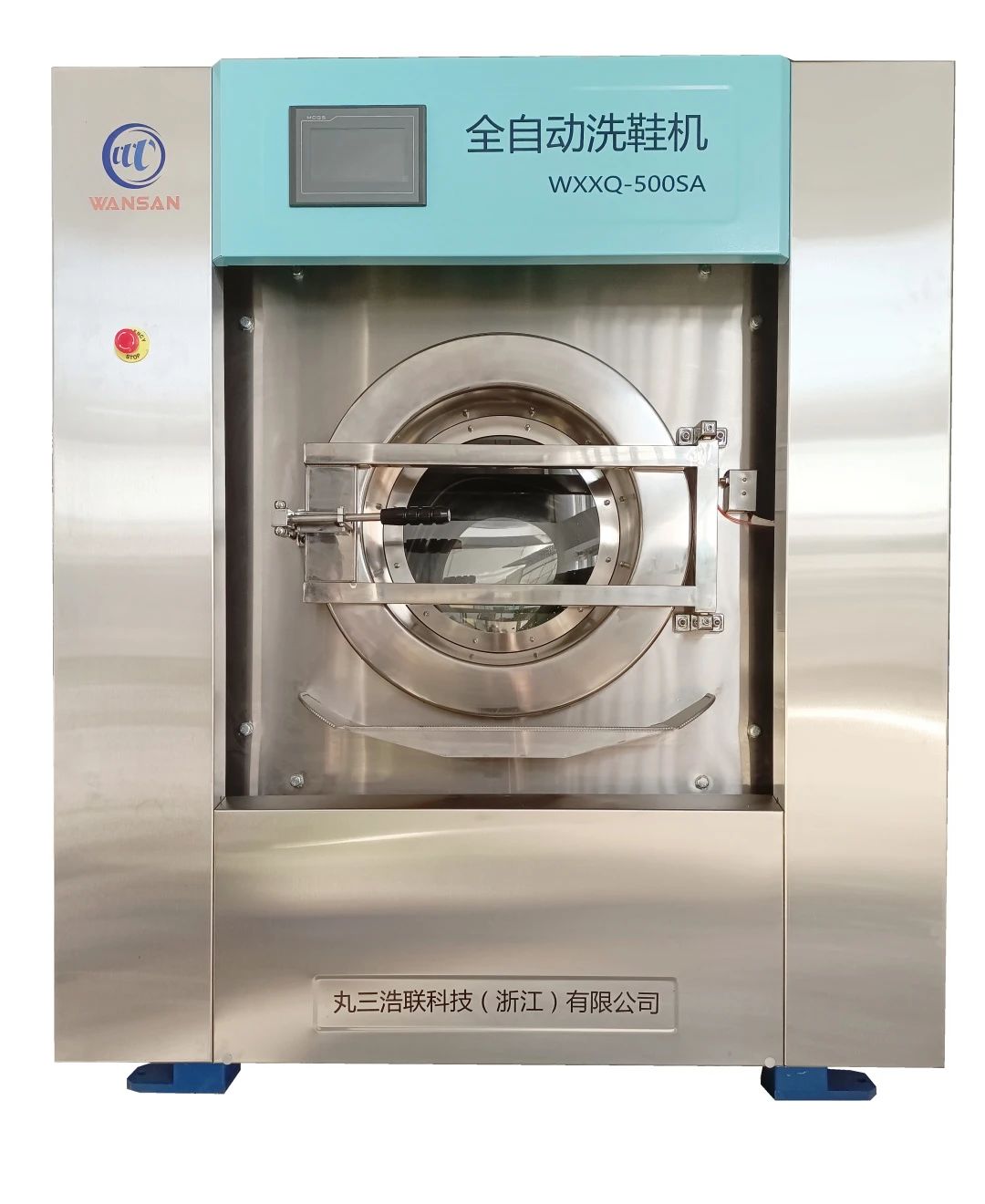

全自动洗鞋机

全自动洗鞋机是目前市面上唯一一款无需人工辅助，就能把鞋子内部和鞋缝清洗干净的拥有多项专利的特制设备。

【性能优势】

1.采用双层滚筒结构设计，双层滚筒中间配有大量硅胶颗粒(3cm*1cm)，洗涤工程中硅胶颗粒自动流出可进入鞋子内部使得鞋子清洗更加充分;洗完后自动回收硅胶颗粒;滚筒内侧配有毛刷，清洗鞋子表面的同时更充分的收集硅胶颗粒；

2.滚筒采用特殊定制型小孔内筒结构，去污能力增加30%左右。全悬浮避震机构，是真正意义上的无地基机型;滚筒结构独特创新设计，在不伤鞋(含鞋带)的基础上大幅度提升鞋子洗护效率;滚筒排水孔定制化设计可避免鞋带头搅入，鞋带头无需额外防护；

3.采用触摸屏电脑控制器，全流程自动程序完成洗涤工作;滚筒内配有毛刷，清洗鞋子表面的同时更充分的收集硅胶颗粒:配有两个自动皂液泵，配合全自动洗鞋程序，可完成全自动洗涤;

4.本设备主要适用于运动鞋、网面鞋、旅游鞋；

5.本设备完美实现省时、省人、高效、节能环保鞋护功能。

【技术参数】

1、洗涤容量(pairs)：70双/小时

2、滚笼尺寸(mm)：φ1070×620

3、洗衣脱水速度(rpm)：38/700

4、额定电压(ｖ)：380

5、电机功率(kw)：5.5

6、电加热功率(kw)：36

7、冷水进口(inch)：DN20

8、蒸汽进口(inch)：DN25

9、皂液进口(inch)：DN20

10、蒸汽压力(mpa)：0.3-0.5

11、空气压力(mpa)：0.45-0.6

12、外型尺寸(mm)：1550×1600×1850

13、整机重量(kg)：2500

Performance advantages

1. Adopting a double-layer drum structure design, the double-layer drum is equipped with a large amount of silicone particles (3cm * 1cm) in the middle. During the washing process, the silicone particles automatically flow out and enter the inside of the shoes, making the cleaning of the shoes more thorough; Automatically recover silicone particles after washing; The inner side of the drum is equipped with a brush to clean the surface of the shoes while collecting more silicone particles;

2. The drum adopts a special customized small hole inner cylinder structure, which increases the cleaning capacity by about 30%. The fully suspended shock absorber is a truly groundless model; The unique and innovative design of the drum structure significantly improves the efficiency of shoe cleaning without damaging the shoes (including shoelaces); The customized design of the drum drainage hole can prevent the toe of the shoe from getting tangled in, and the shoelace tip does not require additional protection;

3. Using a touch screen computer controller, the entire process is automatically programmed to complete the washing work; Equipped with a brush inside the drum, it can clean the surface of shoes while collecting silicone particles more fully. Equipped with two automatic soap pumps, combined with a fully automatic shoe washing program, it can complete fully automatic washing;

4. This device is mainly suitable for sports shoes, mesh shoes, and travel shoes;

5. This device perfectly achieves time-saving, labor-saving, efficient, energy-saving, and environmentally friendly shoe protection functions.

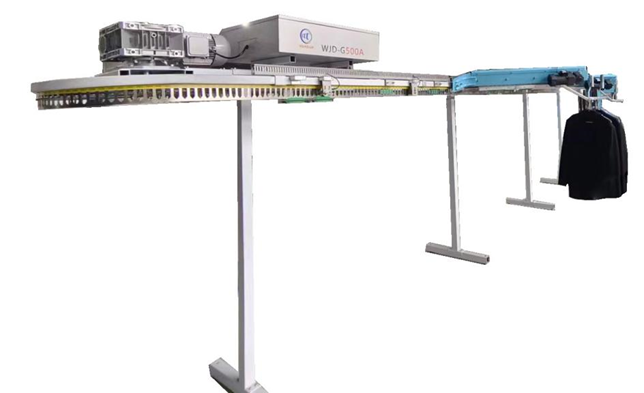

智能集单系统（钢带式）

【性能优势】
1、采用铝合金轨道，轻便快速；
2、采用优质钢材，轴承外包尼龙抗磨损，低噪音，采用特种整条不锈钢带、高硬度、高韧性、无拉伸、无需添加润滑油，经久耐用；
3、机械手与控制系统和软件系统配合，实现订单集合。
【技术参数】
1、电源：单相220V
2、功率：0.78Kw

Performance advantages
1. Using aluminum alloy tracks, lightweight and fast;
2. Made of high-quality steel, the bearings are wrapped with nylon for wear resistance, low noise, and are made of special whole stainless steel strips with high hardness, high toughness, no stretching, and no need to add lubricating oil, making them durable and long-lasting;
3. The robotic arm cooperates with the control system and software system to achieve order collection.
[Technical parameters]
1. Power supply: single-phase 220V
2. Power: 0.78Kw

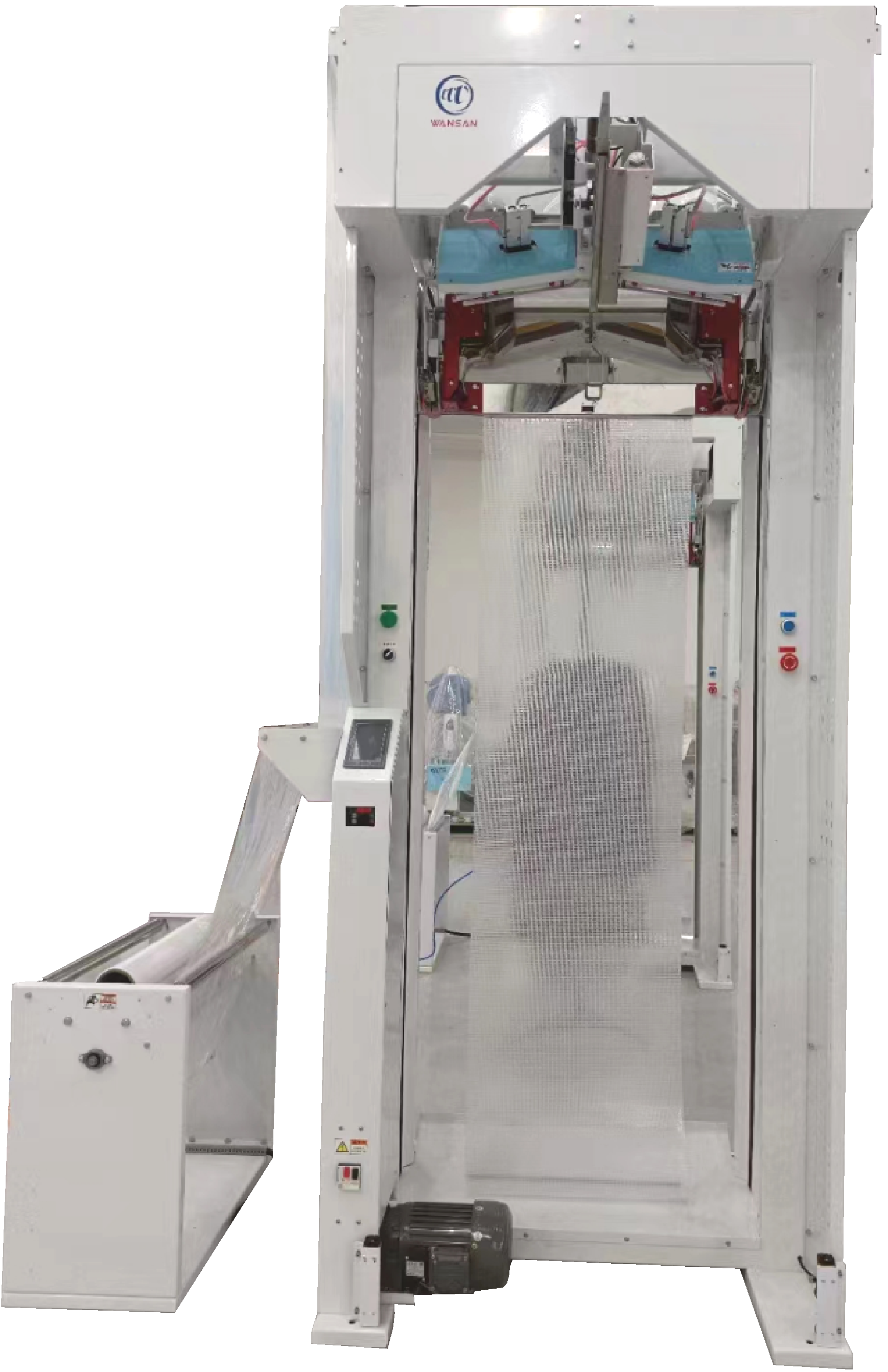

全自动立体包装机（网单版）

【性能优势】
网单版立式超智能包装机，相较于目前标准款全自动立式包装机有以下针对性创新、升级：
1、有效高度明显加高，能很好适应网单冬季长款大衣和北方大棉袄、长外套的全自动包装，
2、包装宽度两档可调，冬季调外档，能完美满足冬季羽绒服和外套的包装，不破膜、美观；夏季调回内档，恢复常规包装宽度，不浪费；
3、机械瓜手优化升级，更灵敏，更稳定；
4、创新开发压帽装置功能，在不影响包装效率的基础上由设备自身同步对帽子进行辅助处理，再也不用担心衣服上帽子对包装膜撑破、甚至损伤设备的情况发生了！该款包装机非常适用于互联网线上中央洗衣工厂。
【技术参数】
1、电源电压：3相380V/50HZ
2、功率：0.80W
3、空气压力：0.50Mpa~0.7Mpa
4、设备膜宽：600mm
5、处理能力：450件/h
6、尺寸规格:宽1400mm*深950mm*高2620mm
7、重量：300Kg

The online single version vertical super intelligent packaging machine has the following targeted innovations and upgrades compared to the current standard fully automatic vertical packaging machine:
1. The effective height is significantly increased, which can adapt well to the fully automatic packaging of winter long coats and northern cotton jackets and long coats,
2. The packaging width can be adjusted in two levels, and the outer level can be adjusted in winter, which can perfectly meet the packaging needs of winter down jackets and outerwear, without breaking the film and looking beautiful; Switch back to the inner file in summer, restore the regular packaging width, and do not waste;
3. Optimized and upgraded mechanical melon hand, more sensitive and stable;
4. Innovatively develop the function of the cap pressing device, which synchronously assists in the treatment of the hat by the equipment itself without affecting packaging efficiency. There is no need to worry about the hat on the clothes breaking the packaging film or even damaging the equipment！This packaging machine is very suitable for the Internet online central laundry factory.
[Technical parameters]
1. Power supply voltage: 3-phase 380V/50HZ
2. Power: 0.80W
3. Air pressure: 0.50Mpa~0.7Mpa
4. Equipment film width: 600mm
5. Processing capacity: 450 pieces/h
6. Size specifications: width 1400mm * depth 950mm * height 2620mm
7. Weight: 300Kg
